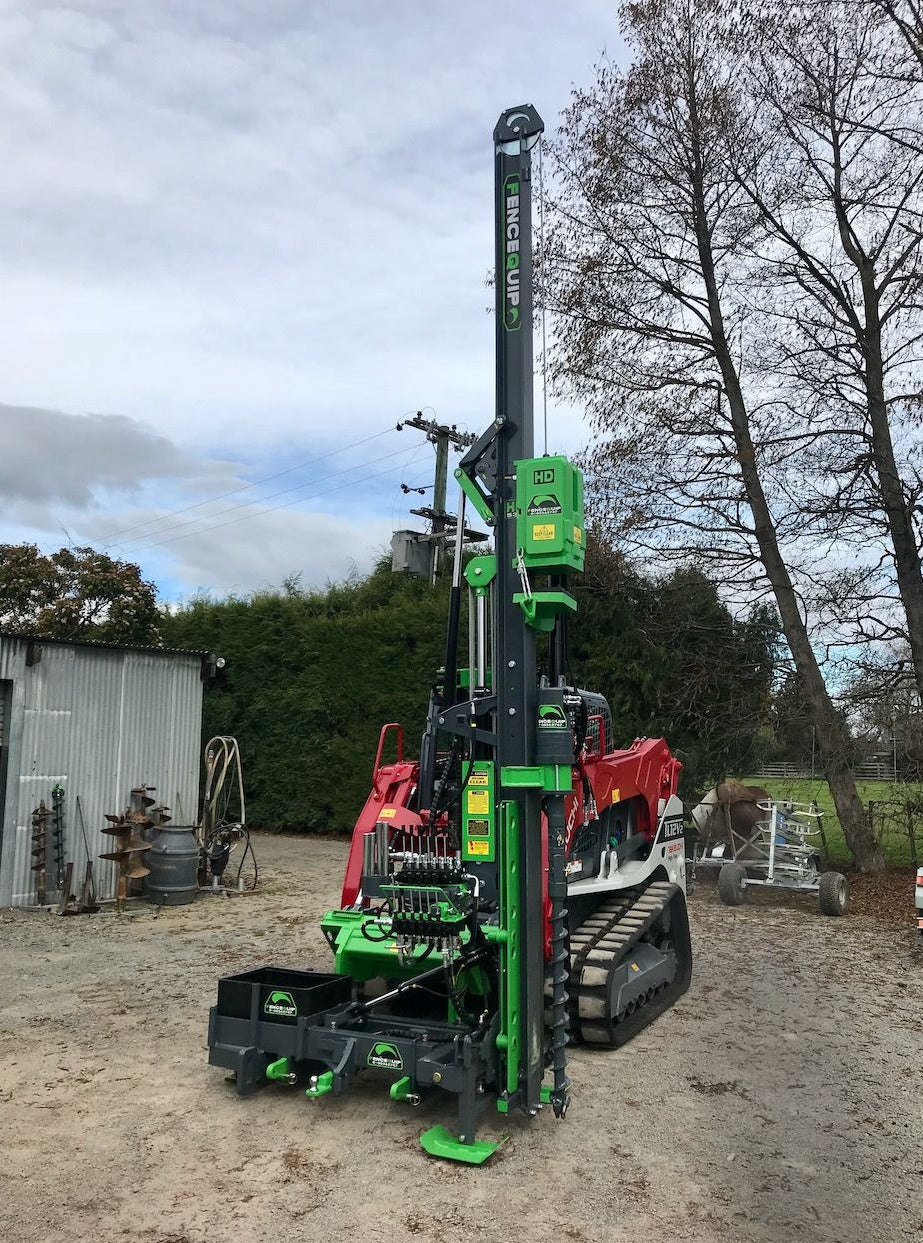

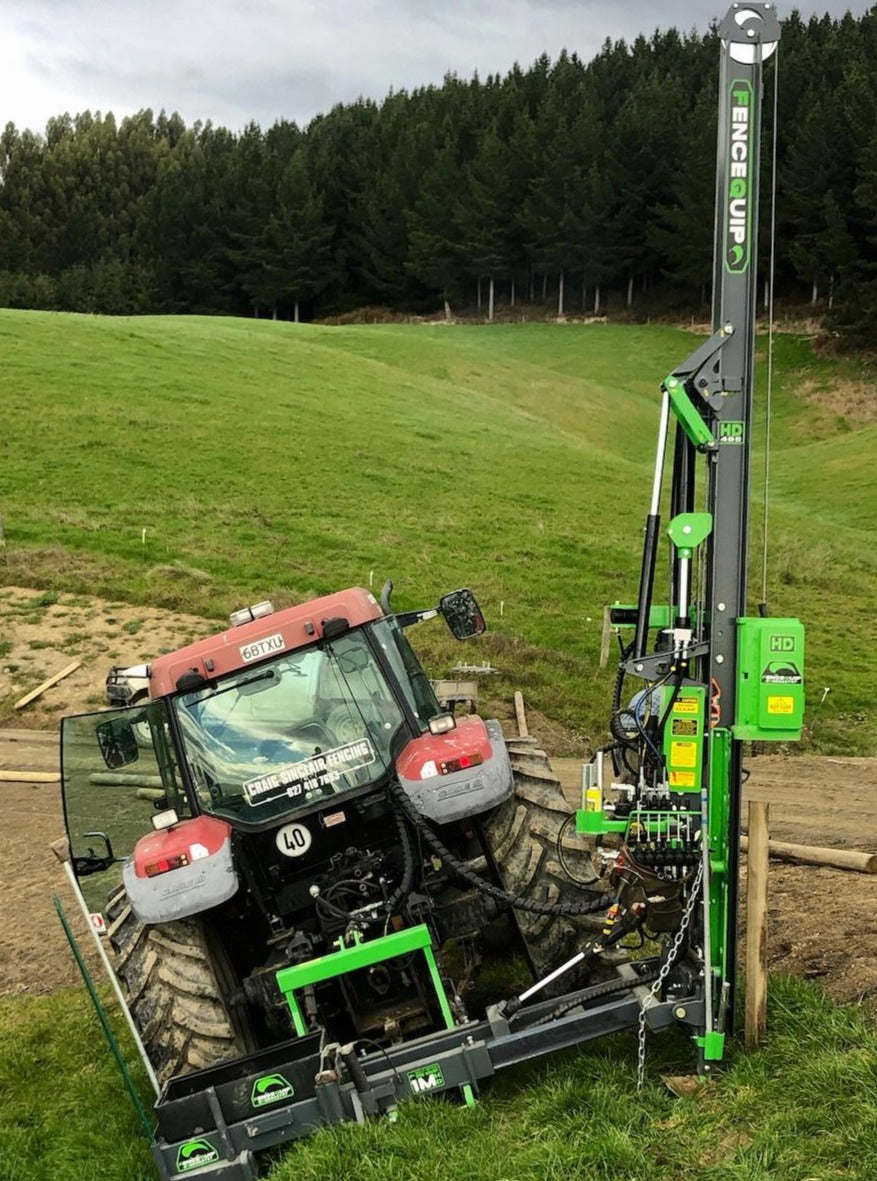

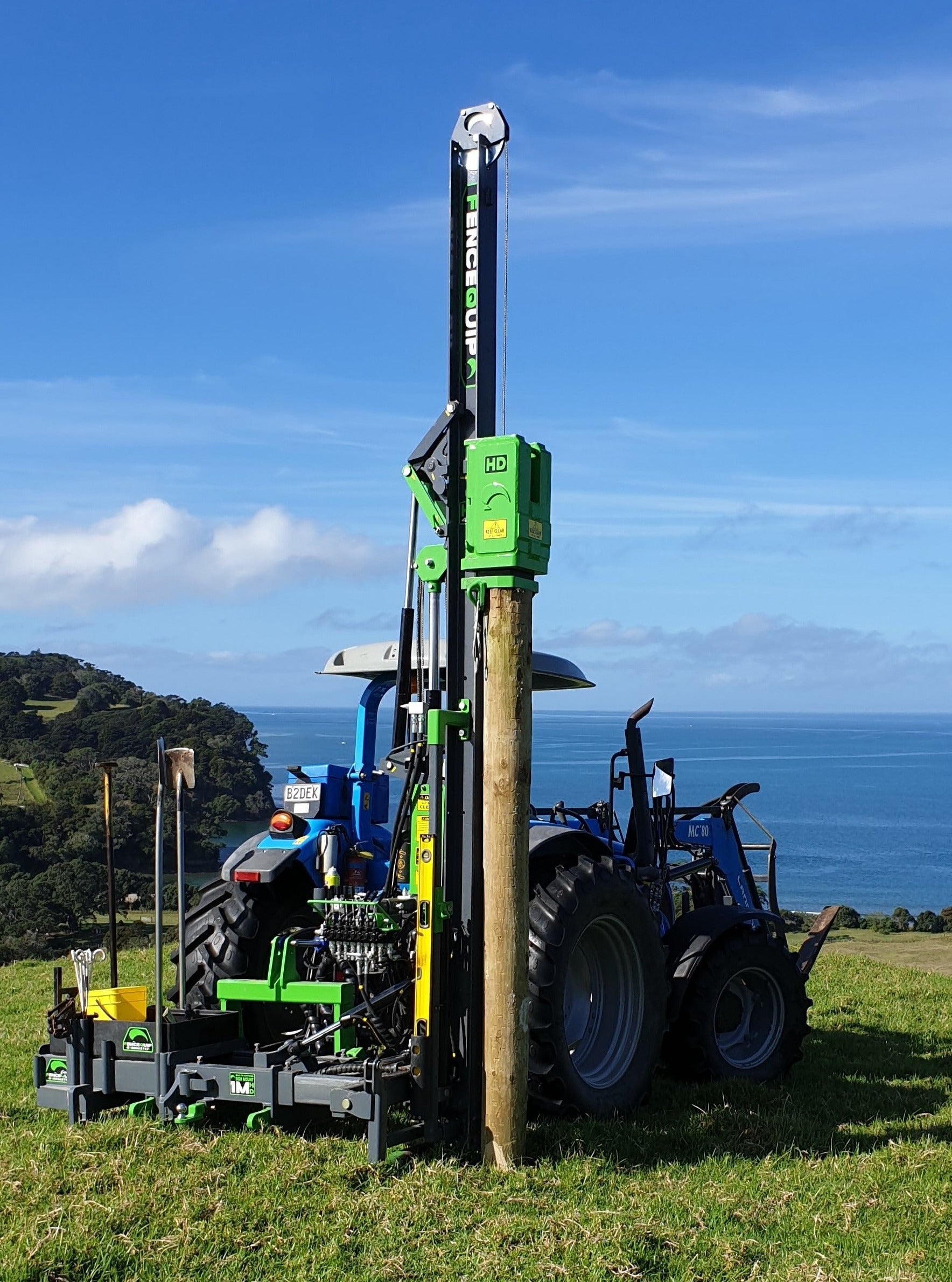

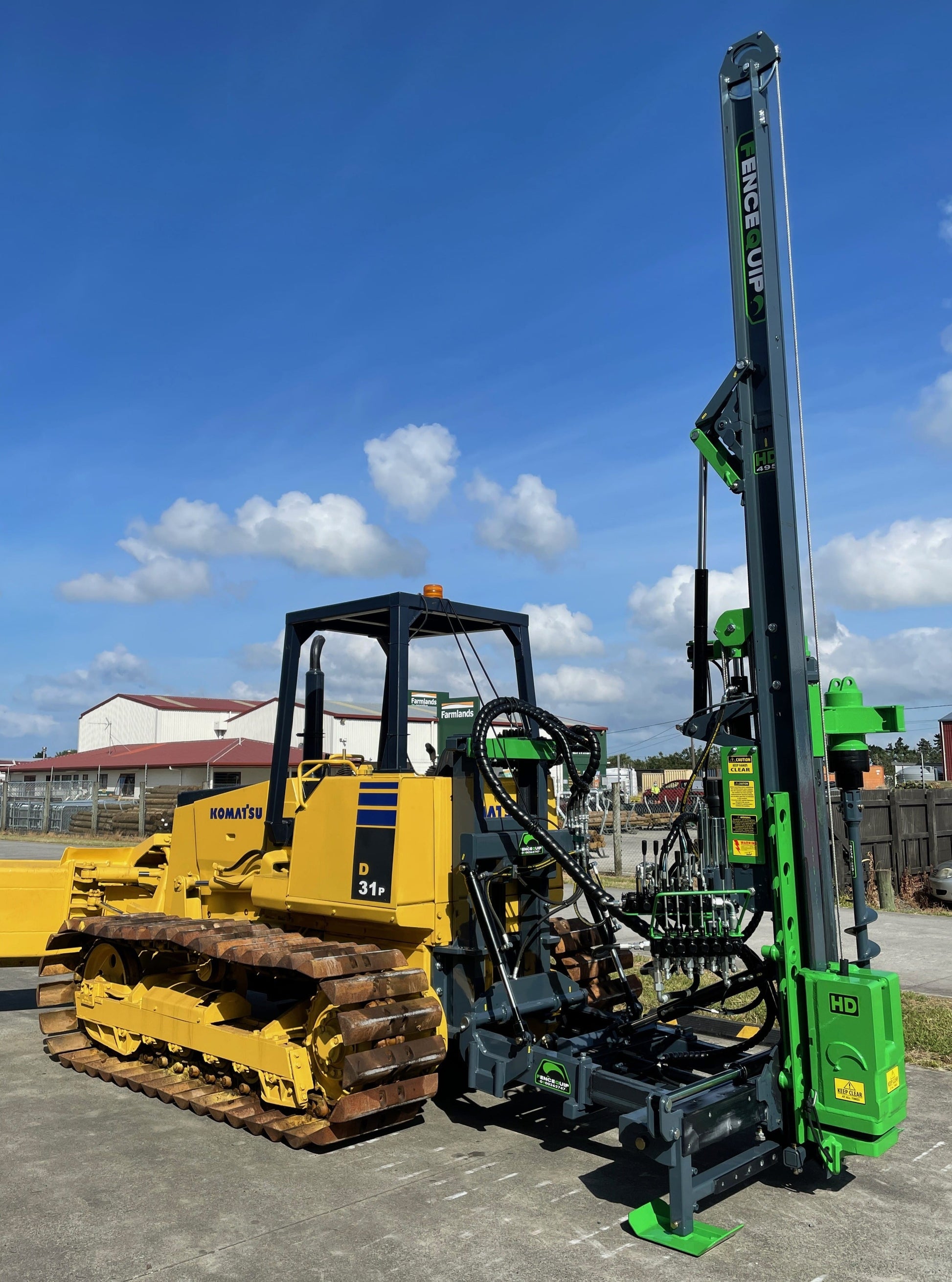

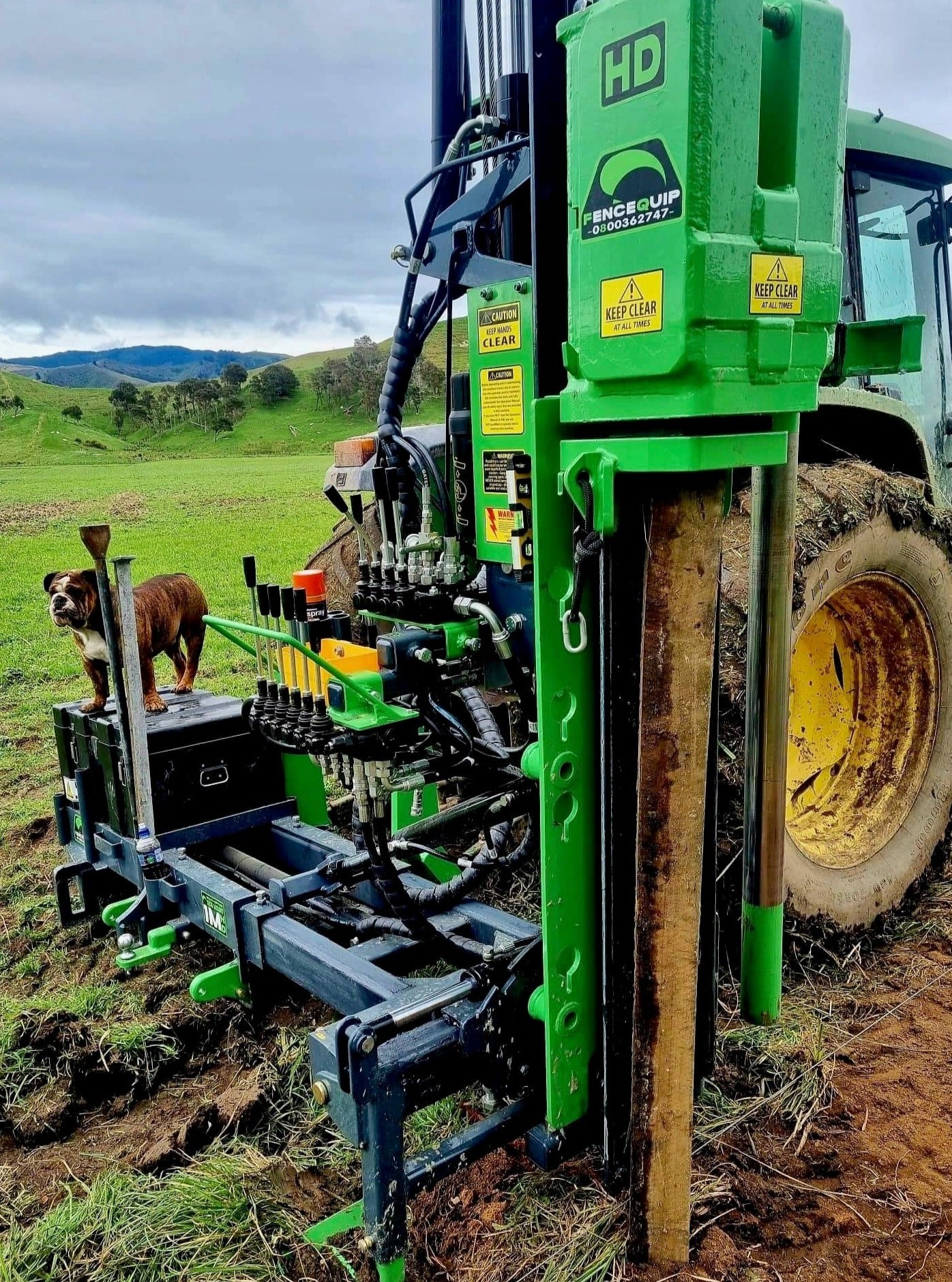

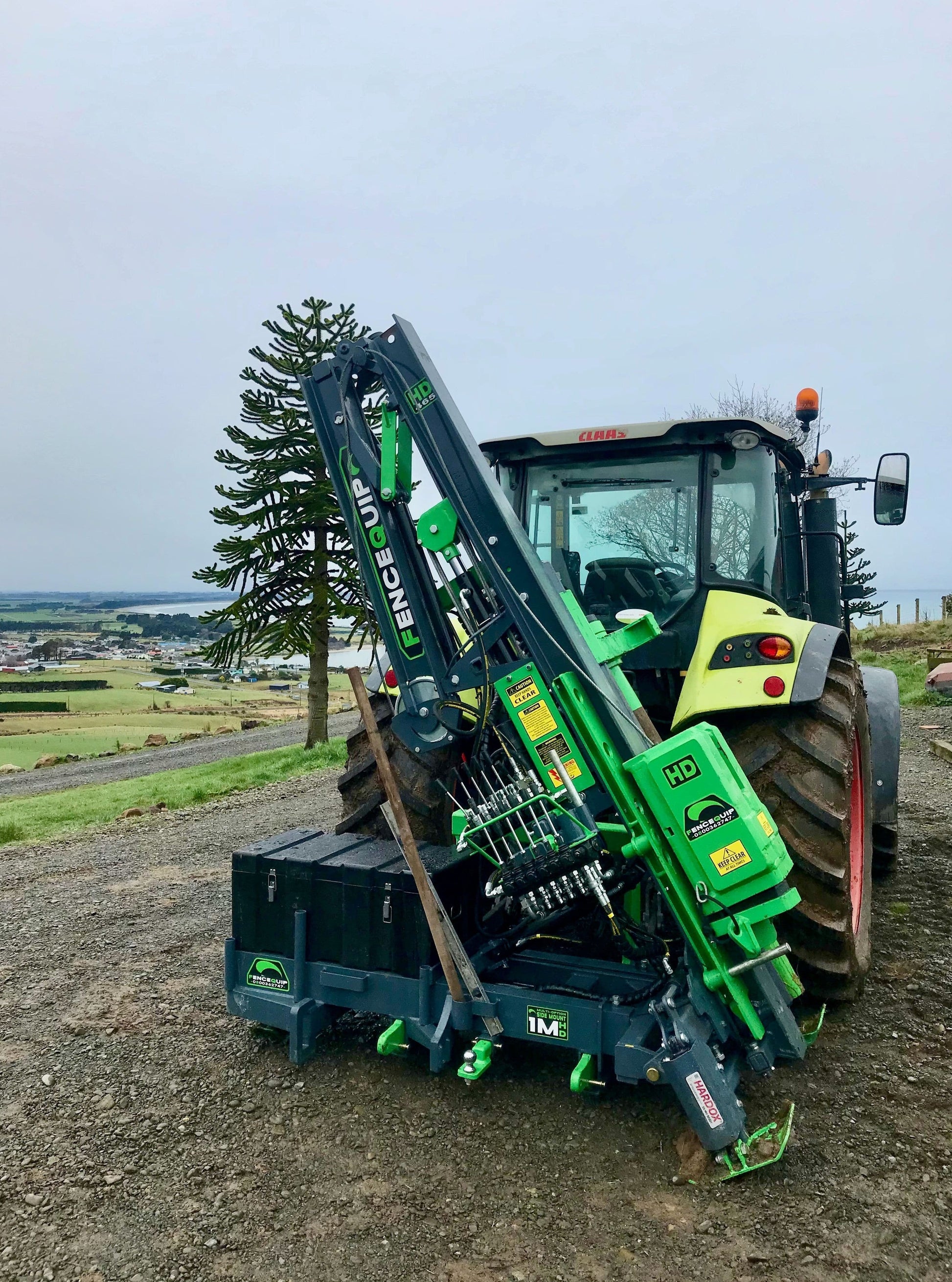

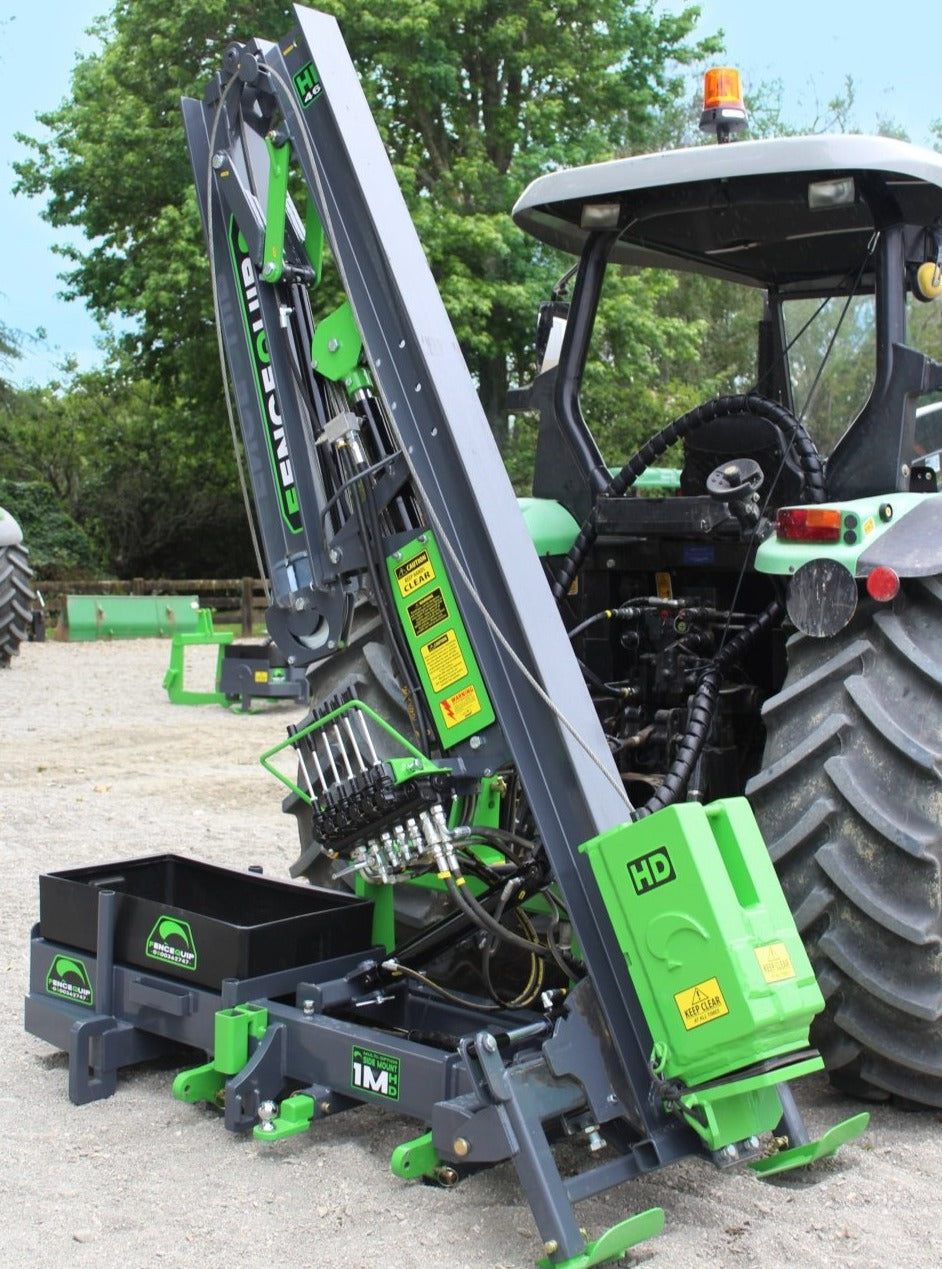

HD - Contractors Post Driver

HD - Contractors Post Driver

HD for Heavy Duty. The HD Post Driver is 100% designed and built to withstand everyday fencing in tough conditions.

The HD is built with the highest quality of parts. No expense has been spared in the manufacturing of this machine. Built tough for contractors and fencing professionals.

The HD's high tech Block allows the user to have alot more Block height. This allows you to thump larger Strainers with a shorter Mast. With our 4.15m Mast you can thump a 3m Strainer, 4.65m Mast a 3.6m Strainer and with our 4.95m Mast a 3.9m Strainer.

It has a 10mm Wire Rope and large Top Pulley to extend Wire Rope life.

We know what it's like working in the field and know that it is not convenient having to change a Top Link or Side Tilt Pin when you need more angle and you are in the middle of a job. Therefore we designed the HD to be able to achieve its full 55° Side Tilt and 60° Top Link without changing any Pins.

All of our Hydraulic Rams are High quaility screw-end Rams. Made by Victor Hydraulics in Christchurch NZ. Screw-end Rams can cope with more fatigue and higher pressure . This is important as Post Drivers are high vibration machines.

Our machines are sandblasted to ensure paint longevity.


Standard Features Include:
  • 4.15m Straight Mast (150 UC37)
  • 6 Bank Hydraulic Valve
  • 270mm Top Pulley
  • 75mm Adjustable Main Pin
  • 10mm Wire Rope
  • 60° Hydraulic Top Link
  • 55° Hydraulic Side Tilt
  • Adjustable Legs
  • Greaseable Pins
  • 280kg Block with Nylon Slides
  • Post-Cap
Options Available:

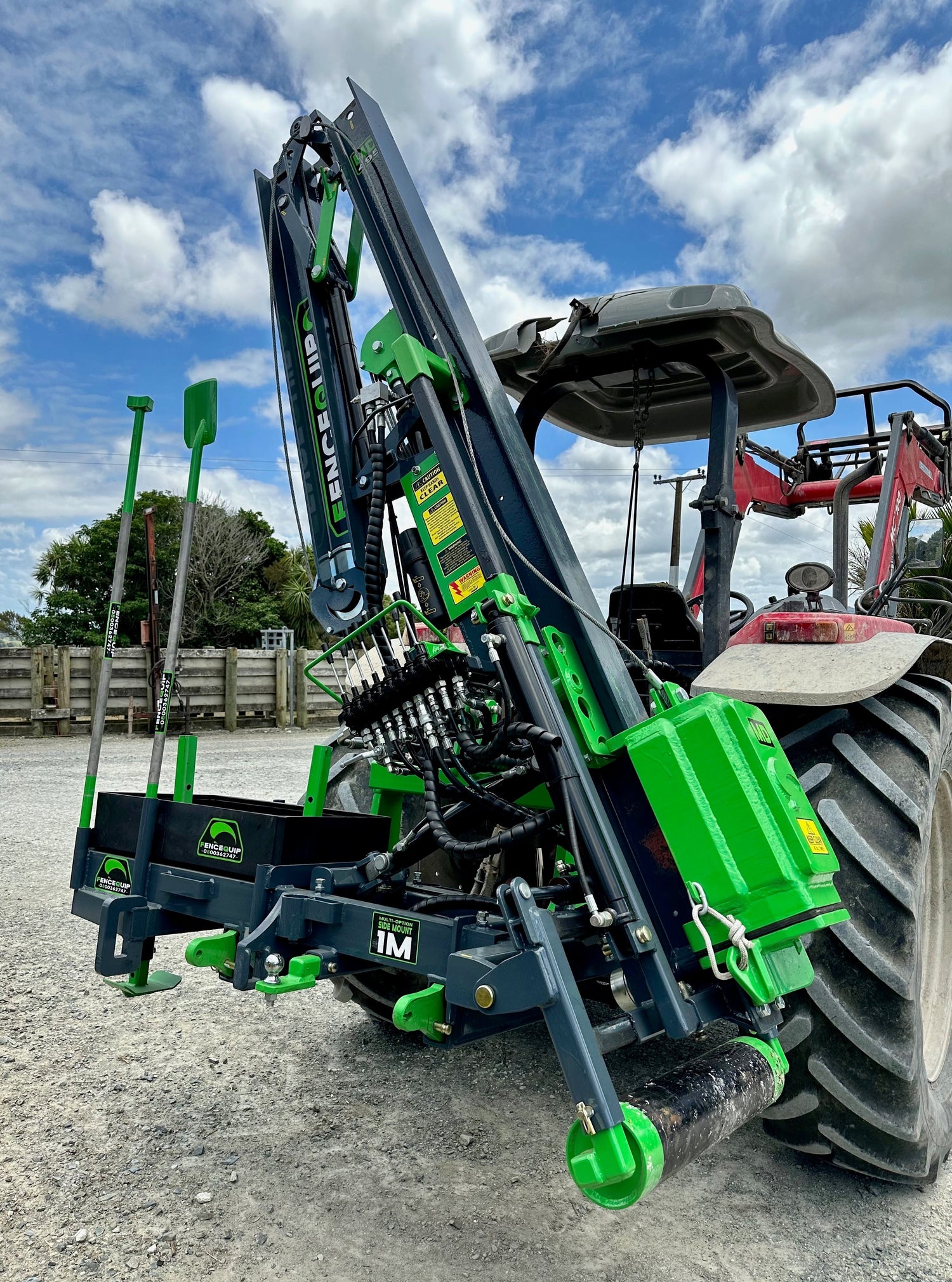

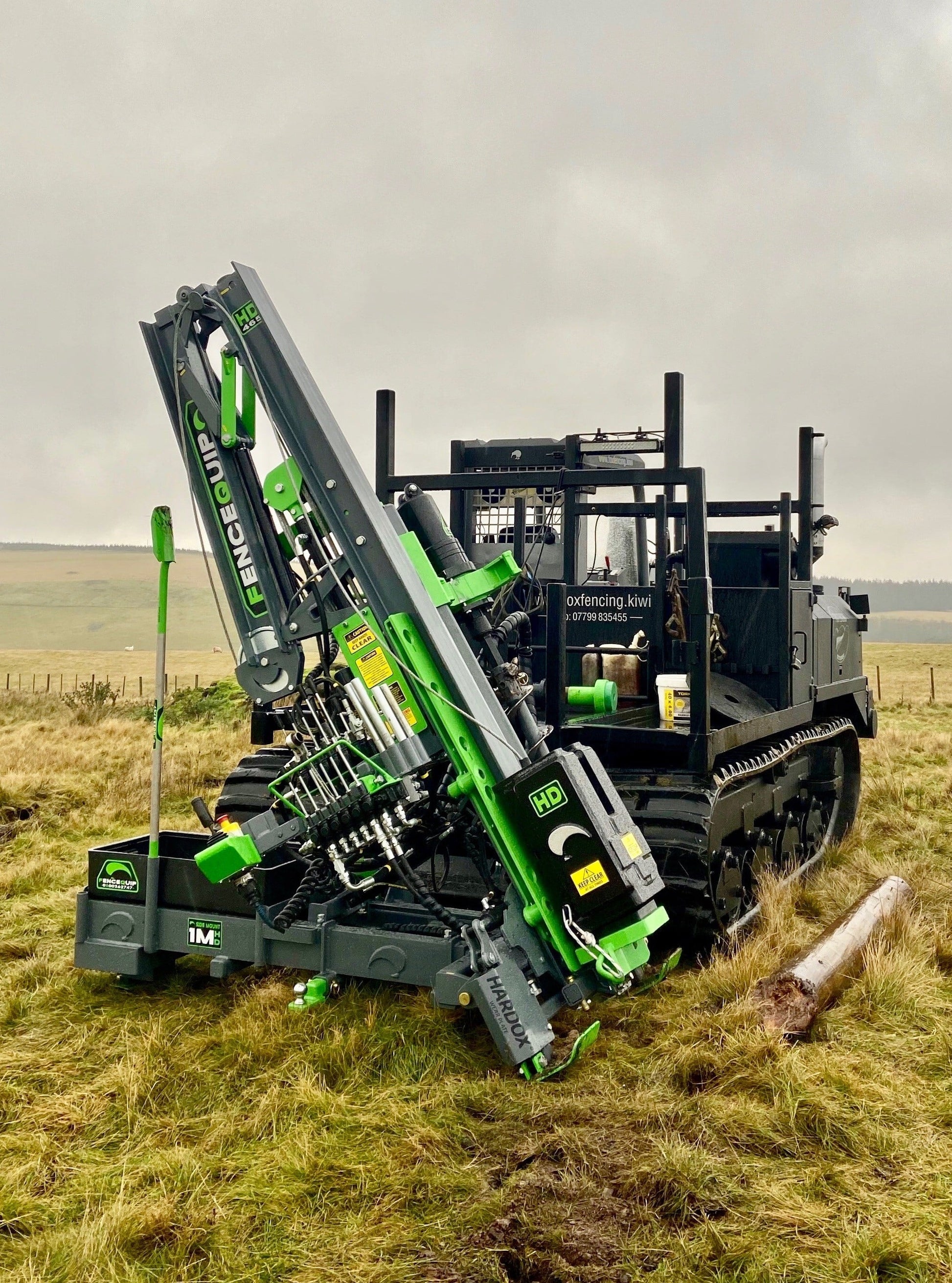

  • 1m Side Mount HD
  • 1m Multi-Option Side Mount HD
  • Rear Shift & Rear Shift Multi-Option
  • Hydraulic Hinge - 4.65m or 4.95m
  • 410mm Mast Shift

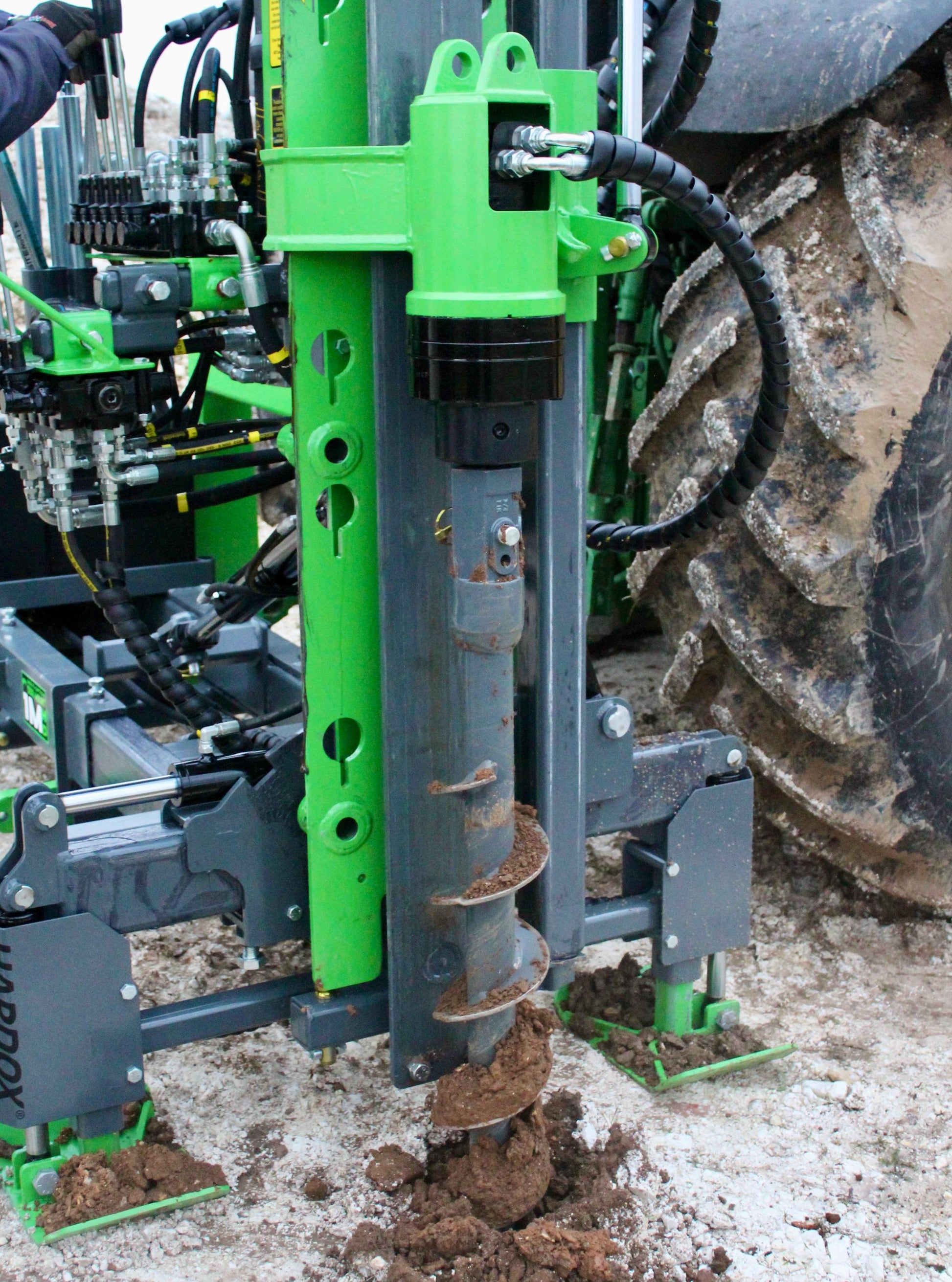

  • Hydraulic Turned Auger Unit -1400mm Travel Depth
  • Hydraulic Turned Rock Spike Unit - 1400mm Travel Depth
  • Auger Head for Rock Spike
  • Block Upgrades - 300kg or 350kg
  • High Country Guide Upgrade
  • Hydraulic Feet
  • Leg Roller
  • Post Lifter
  • HD Post-Cap
  • For more infomation check out our "Options" page
