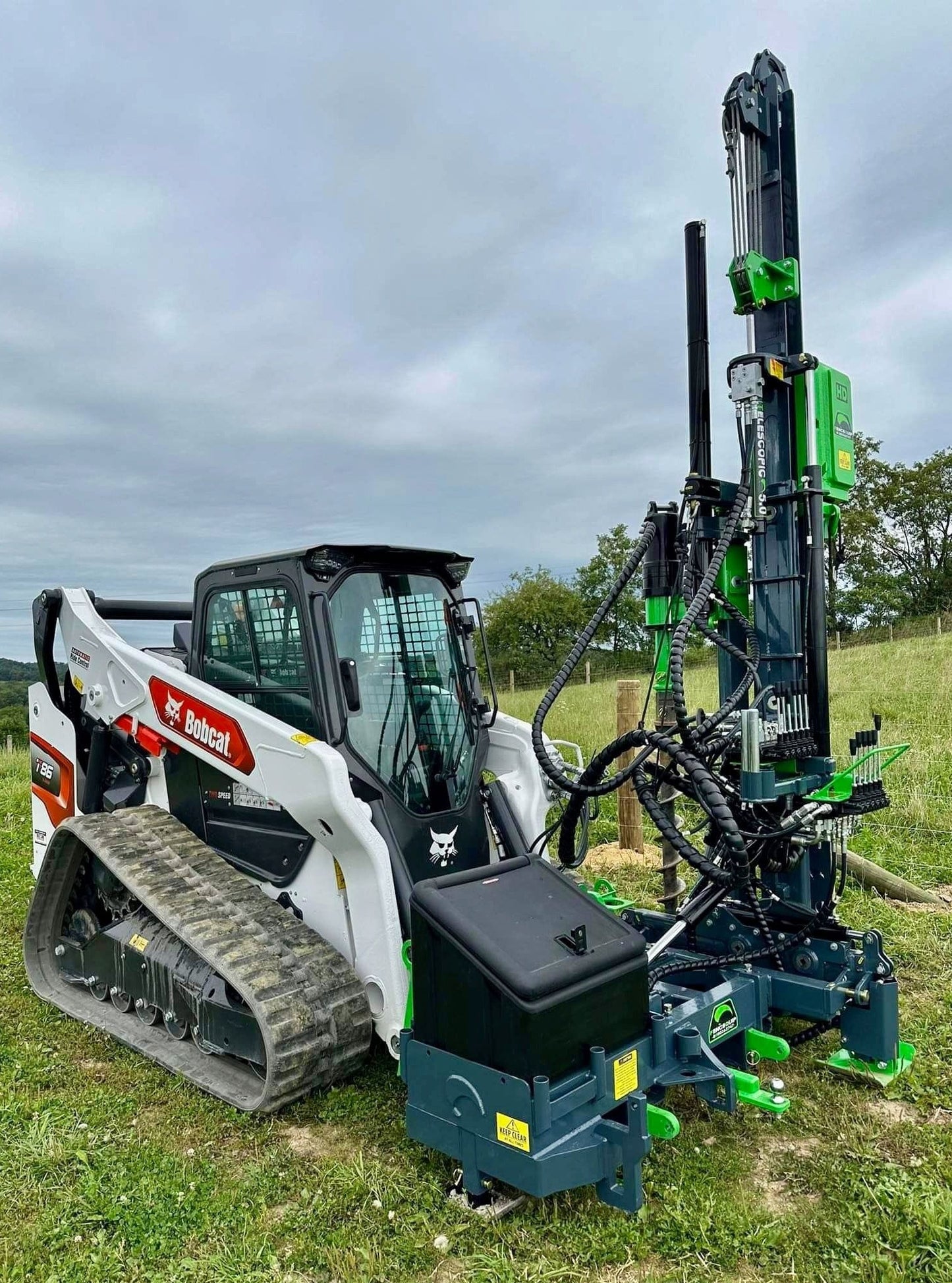

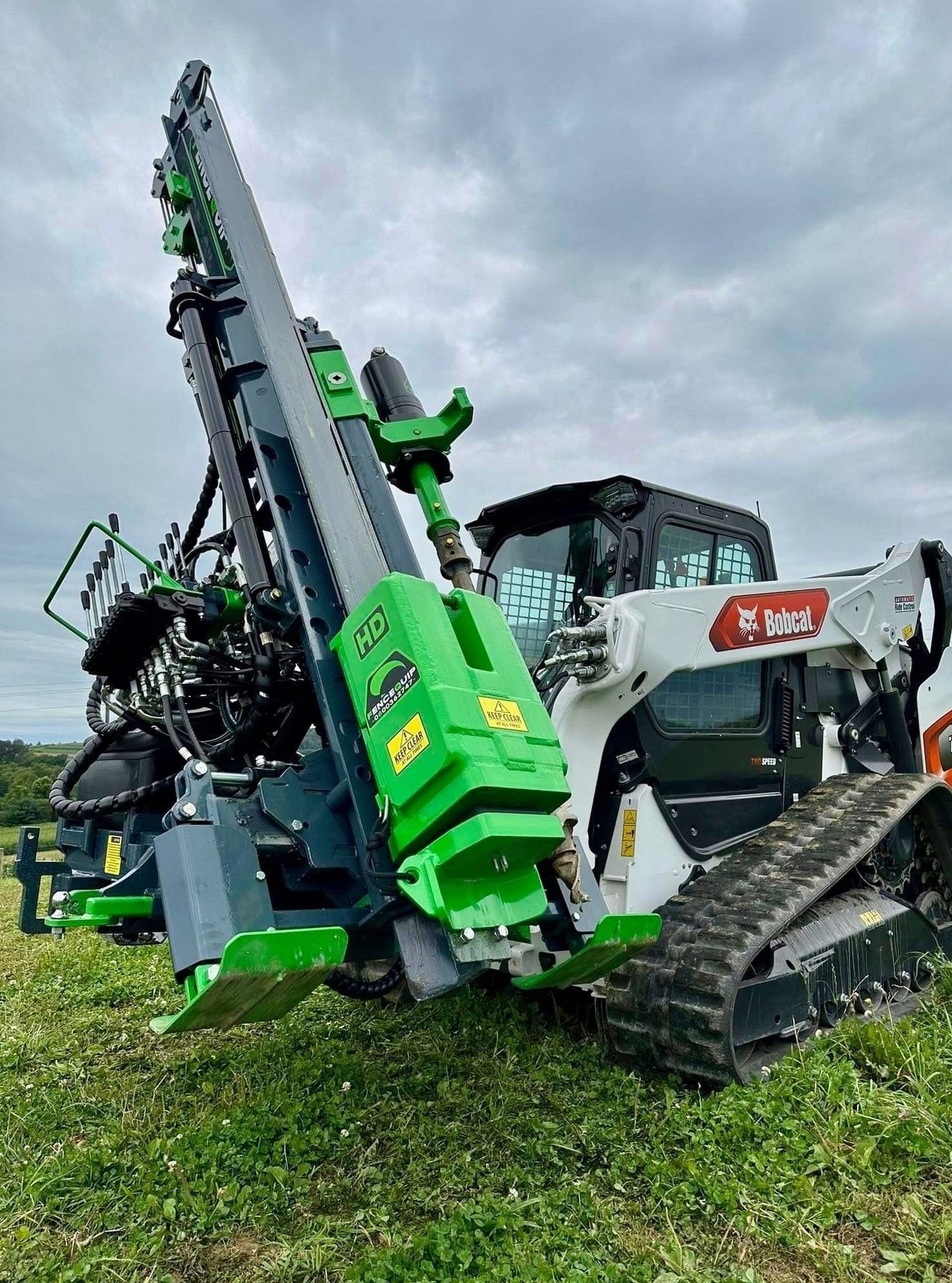

USA Skid Steer Package - HD Telescopic 770

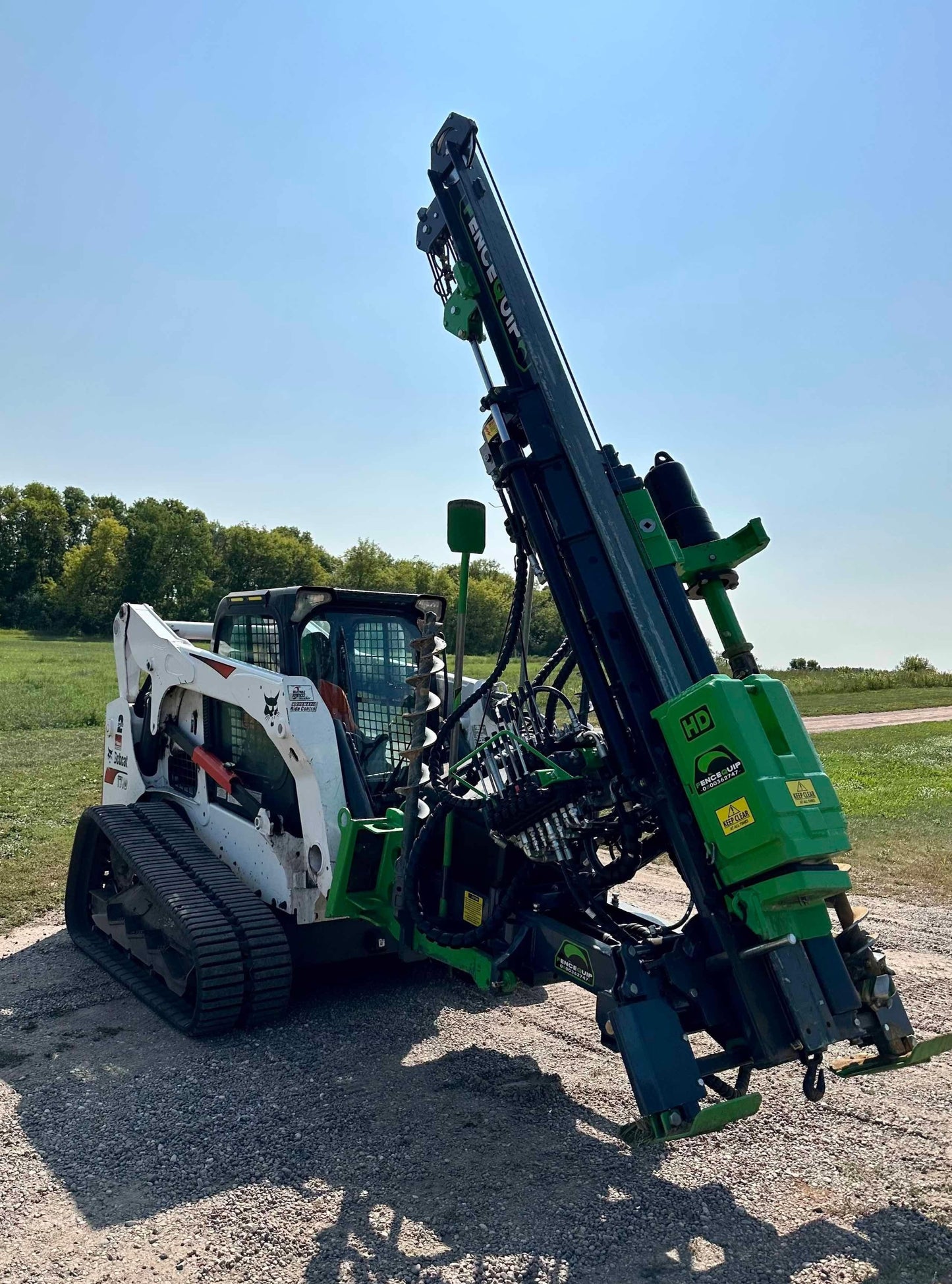

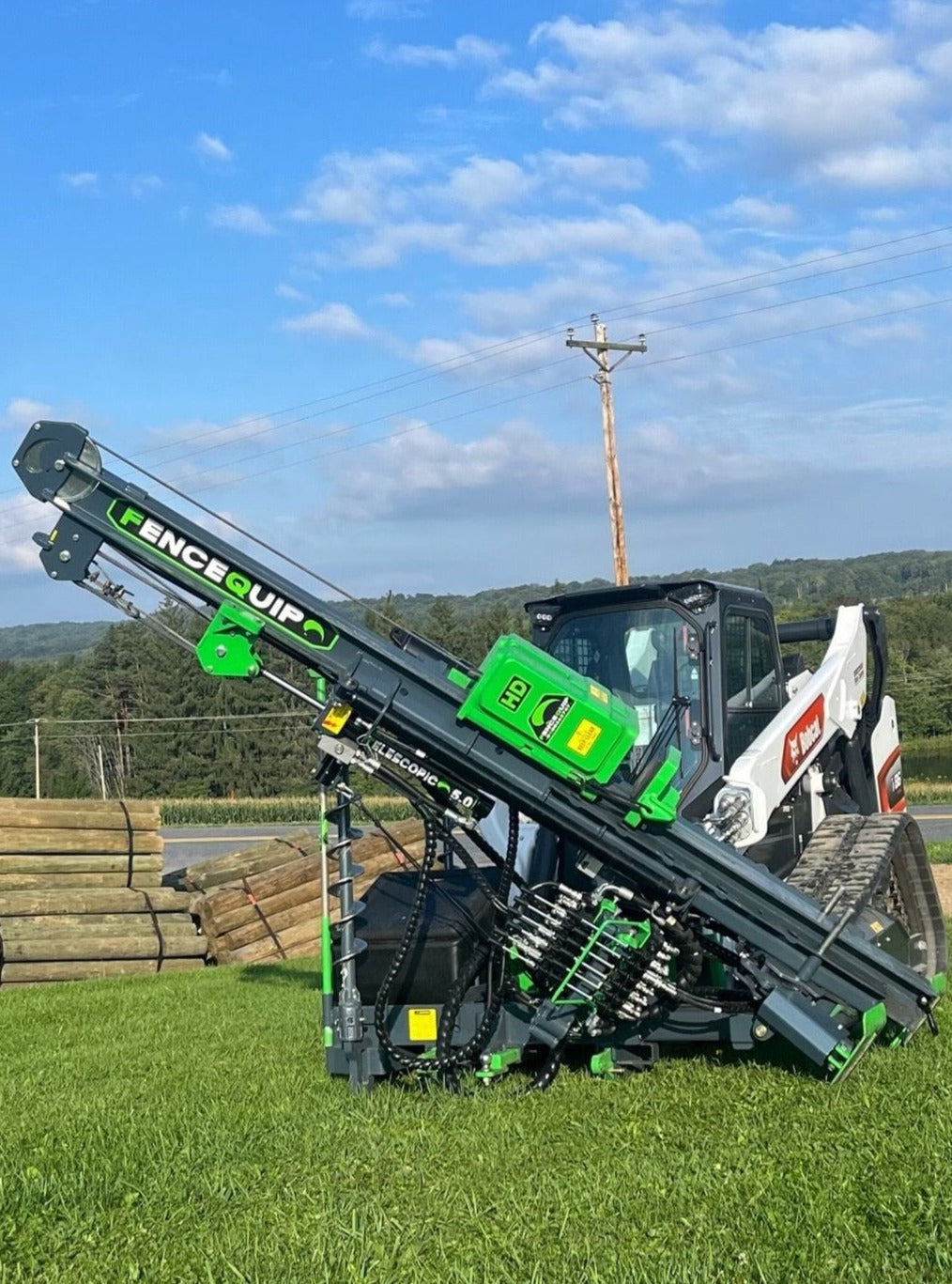

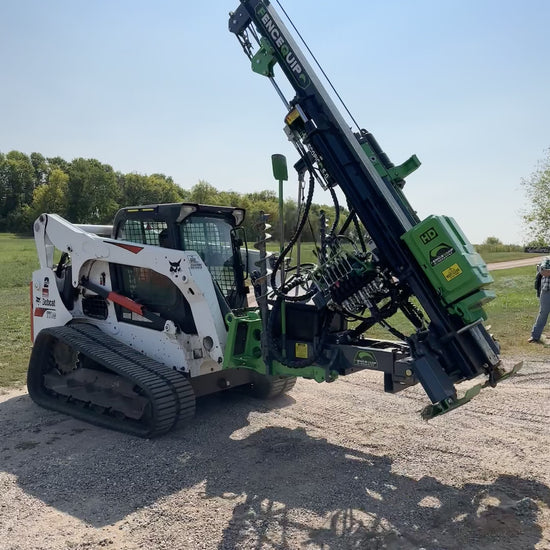

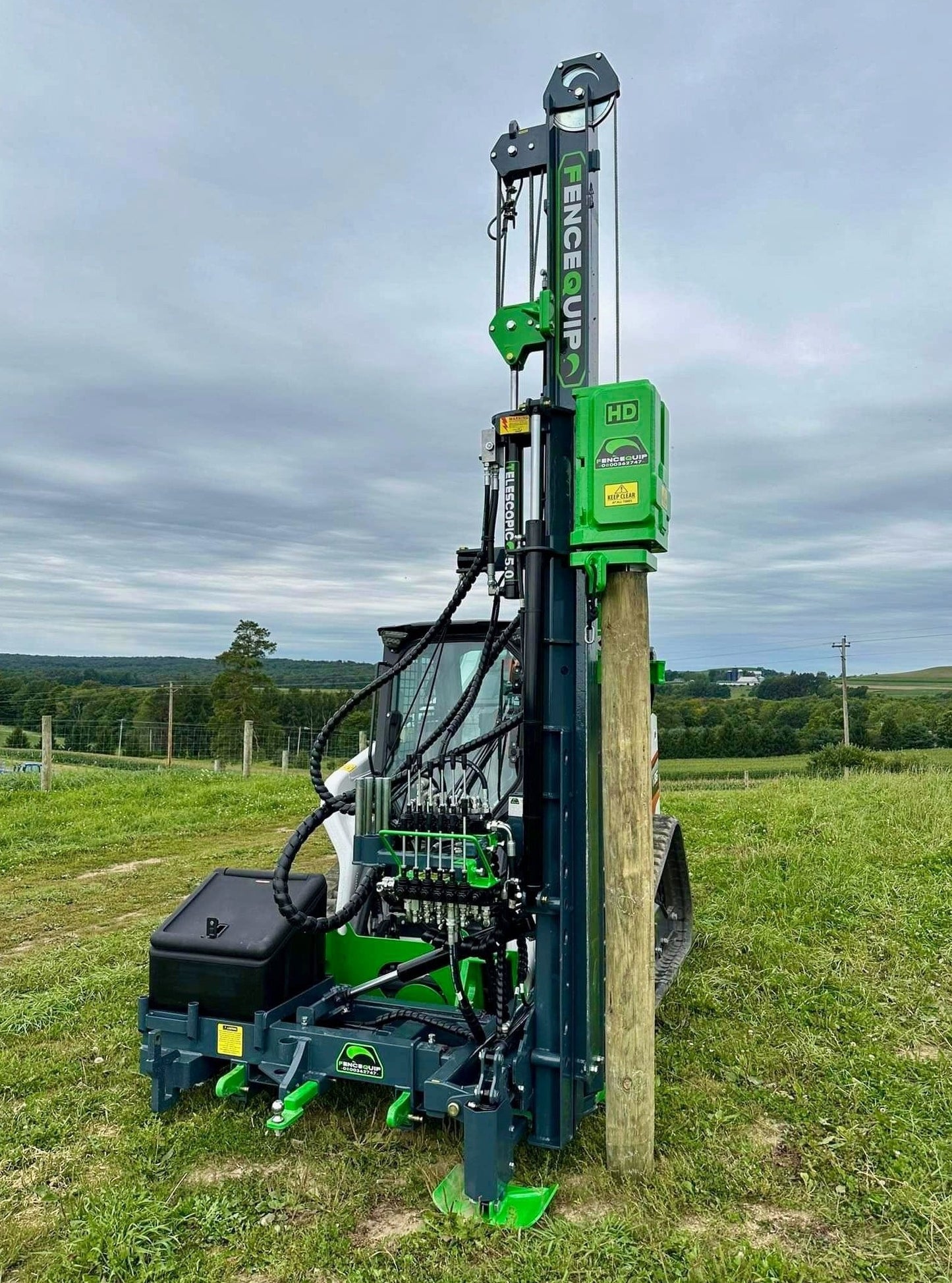

HD Telescopic 770 -  for 90+hp Skid Steers

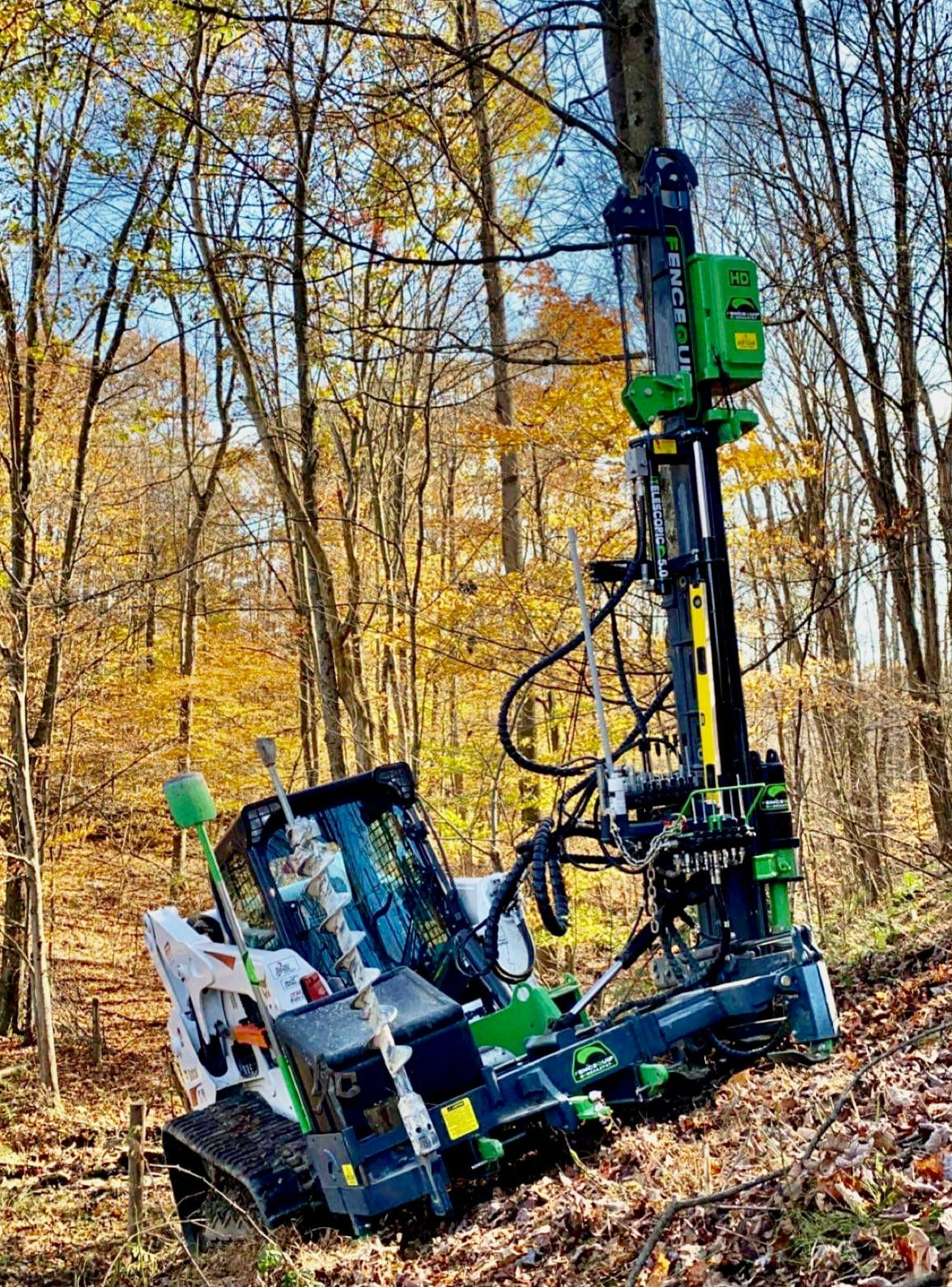

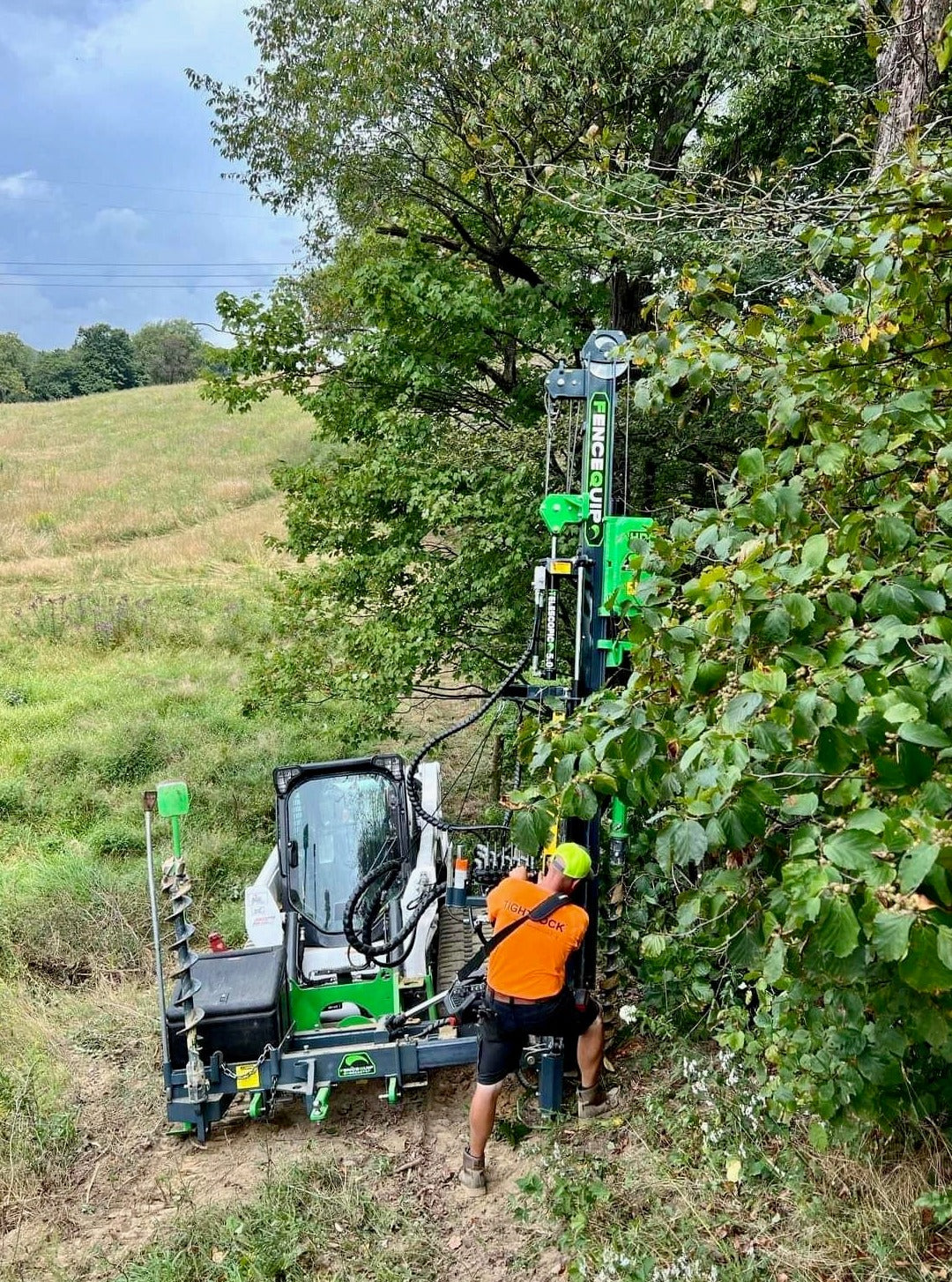

The HD Telescopic 770 is designed to work under power lines and trees.

It has an independent Rock Spike / Drill Ram allowing you to Rock Spike or Drill without lifting the Mast up.

For high strength the Mast includes high tensile Hardox® and Strenx® Steel from Sweden.

The HD Telescopic has a recycling Lift Ram system meaning it does not require a high flow HYD return.

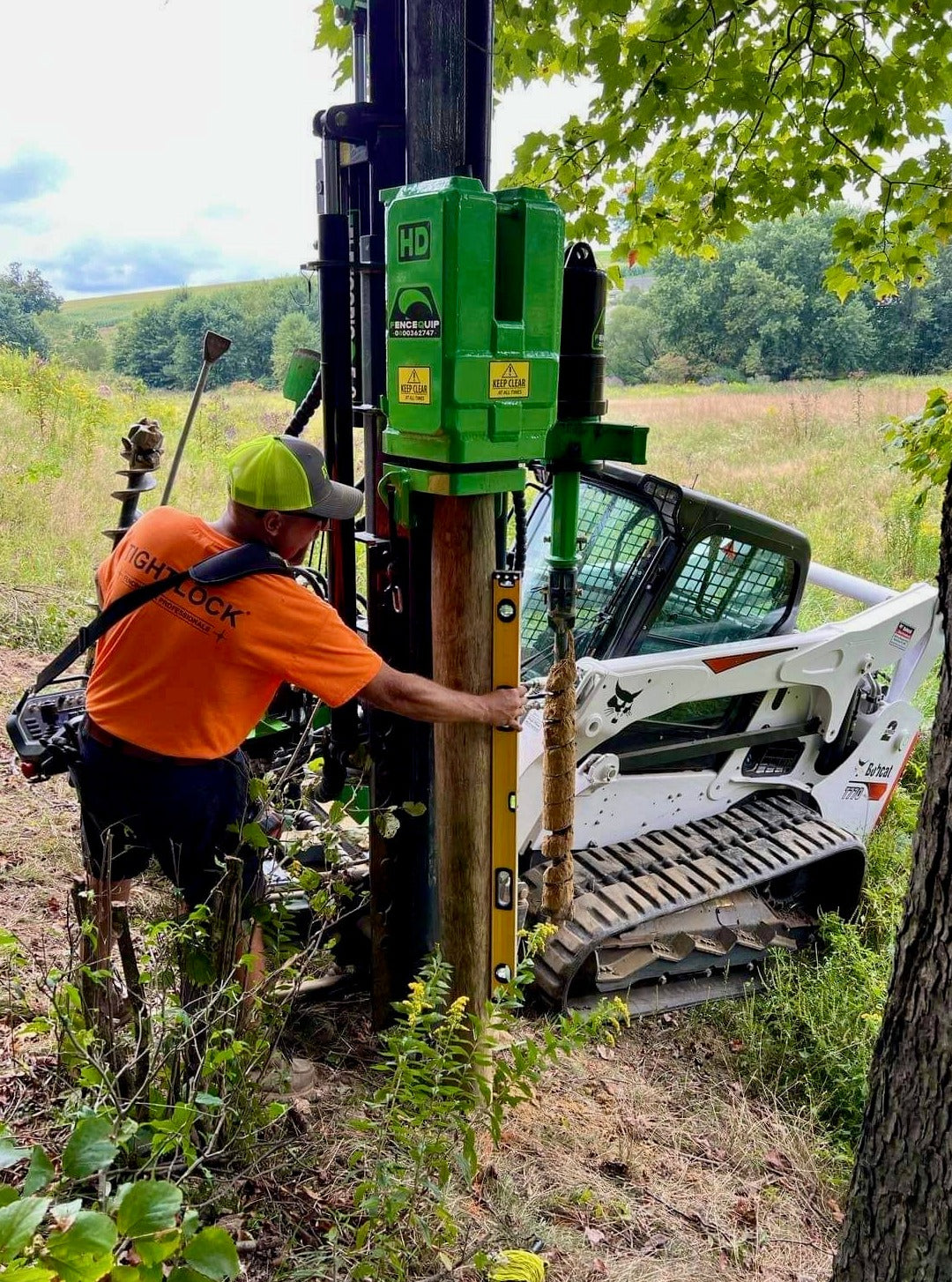

The Post Driver/Side Mount is attached with a set of quick hitch Skid Steer forks that enables the user to pick up the Post Driver/Side Mount from either side or the rear of the machine and has 27 1/2” of travel in all three positions.

HD Telescopic 770 Features Include:

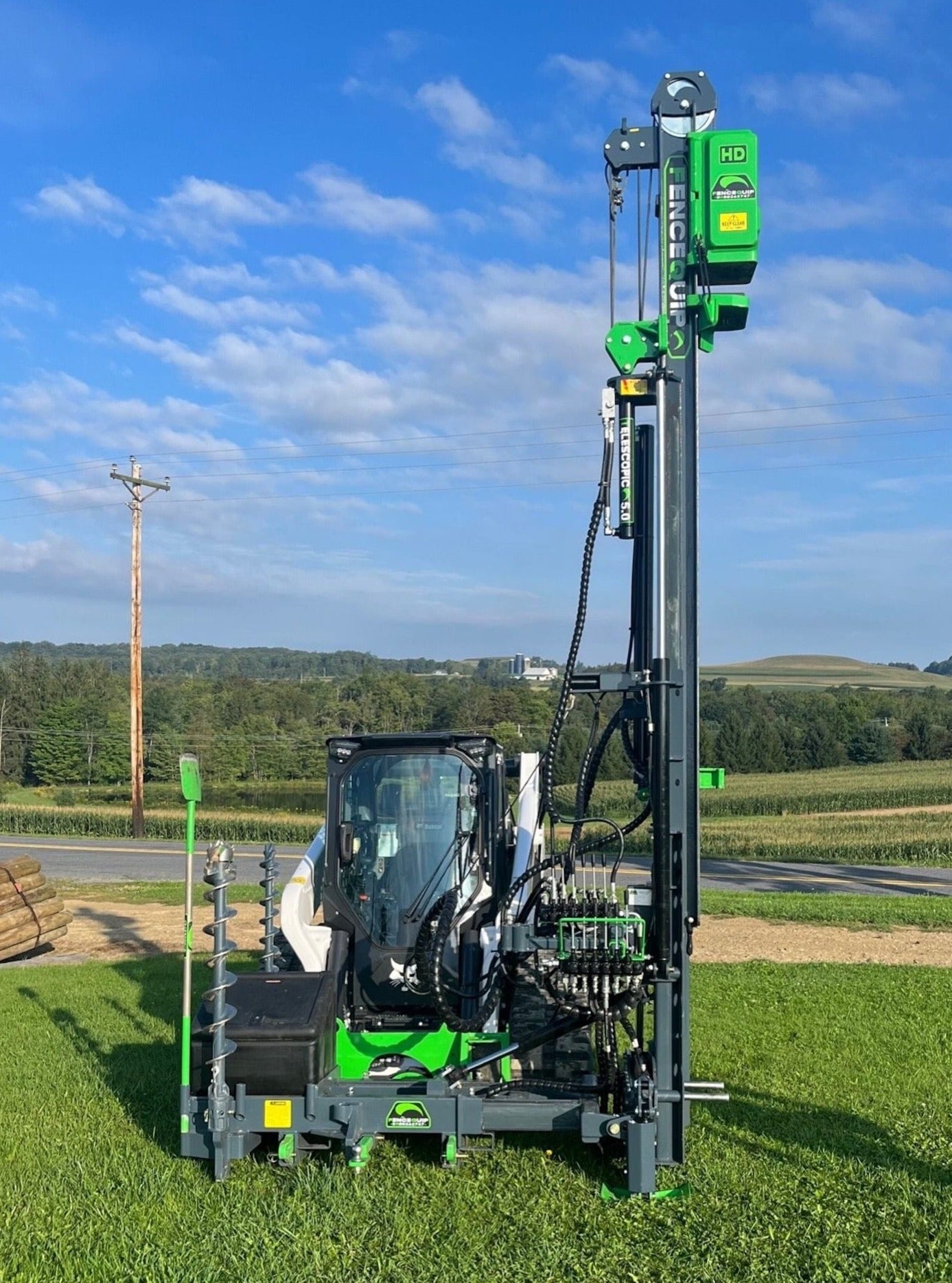

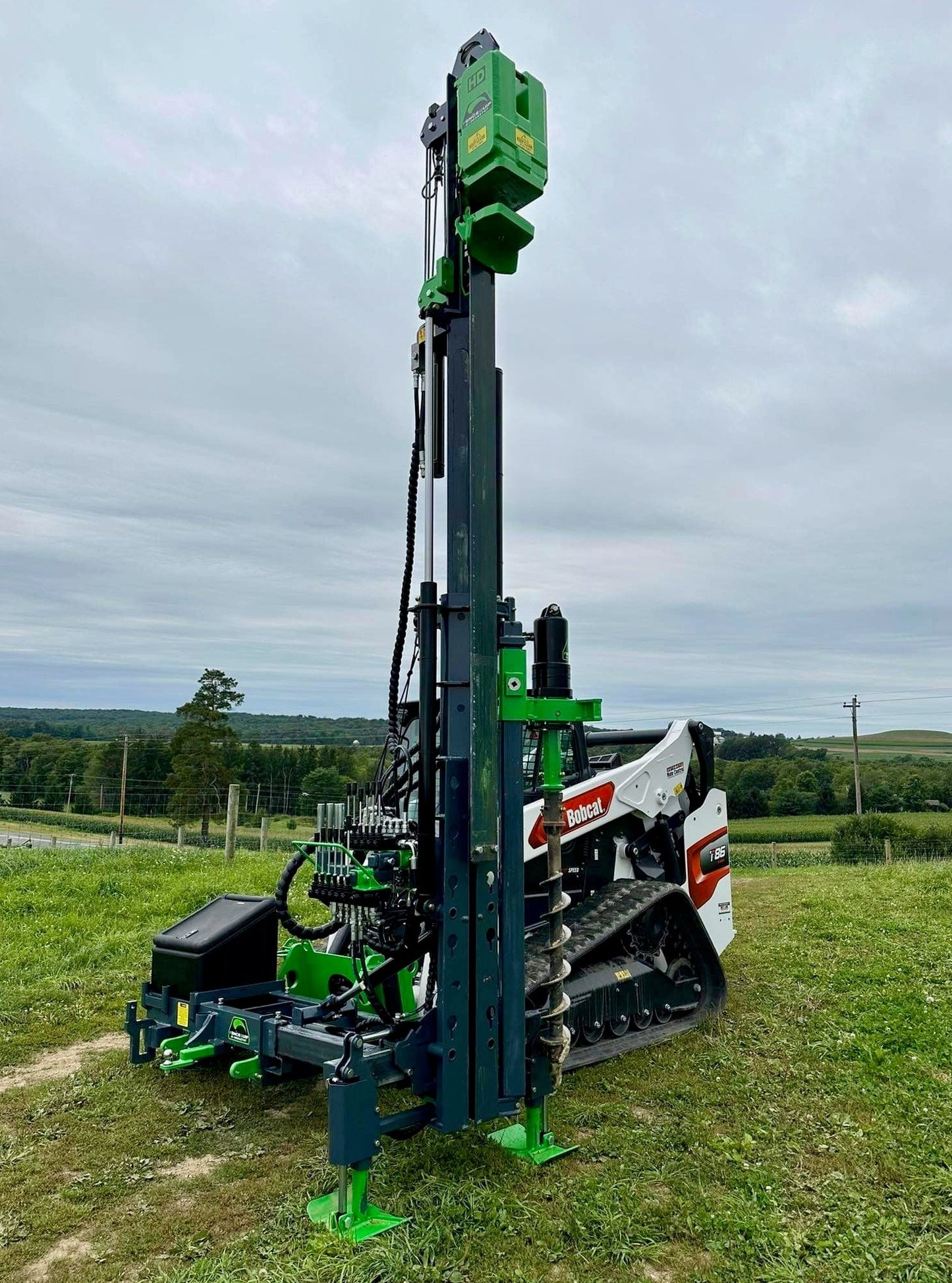

• Telescopic 12’ 5” - 16’ 5” Mast with adjustable/ replaceable Nylon Slides (14‘6“ Post Height)
• 16” Mast Shift with Nylon Slides
• 27 1/2” Side Shift
• 3/8”  Wire Rope
• 770 lbs Hammer with Nylon Slides
• Built in High Country Twin Guides & Pins
• Hydraulic Feet 7” Lift

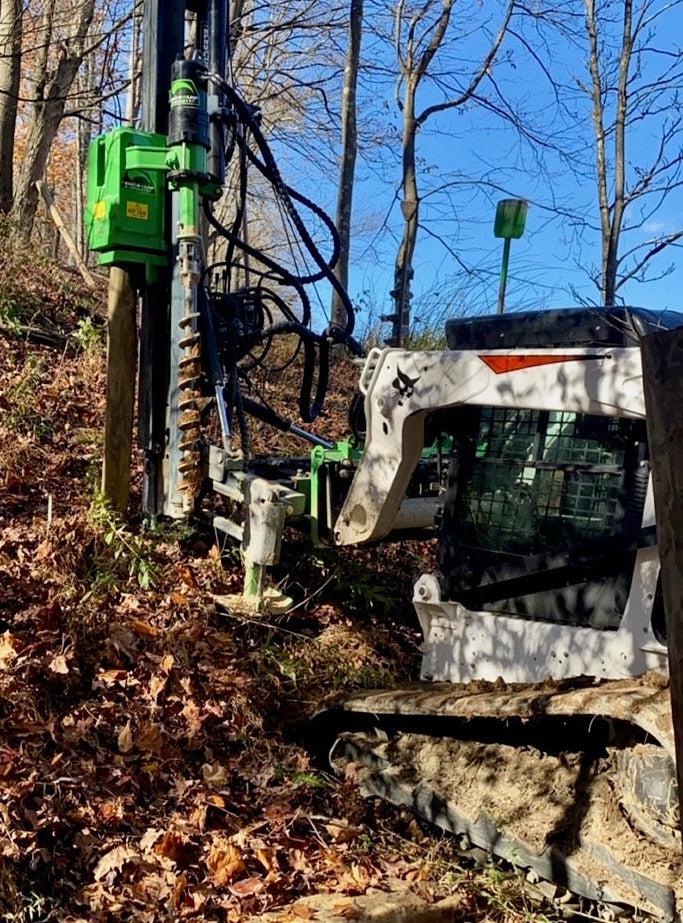

• SHD Rock Spike Unit
• 2x 6 Bank Hydraulic Valves
• Heavy Duty Chromoly Top Link
• 60° Top Link Angle
• 55° Side Tilt Angle
• Grease-able Pins
• 10 1/2” Top Pulley
• 3” Adjustable Main Pin

Options:

• Auger Motor Head
• 5’ 9” Rock Spikes 3 1/2” & 4 3/4” stroking 5’1”

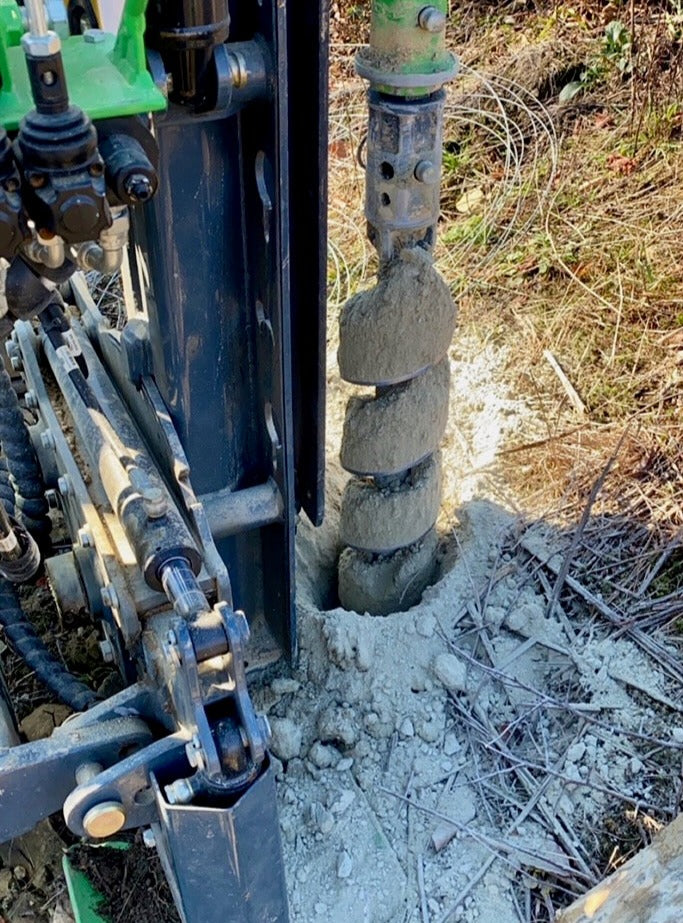

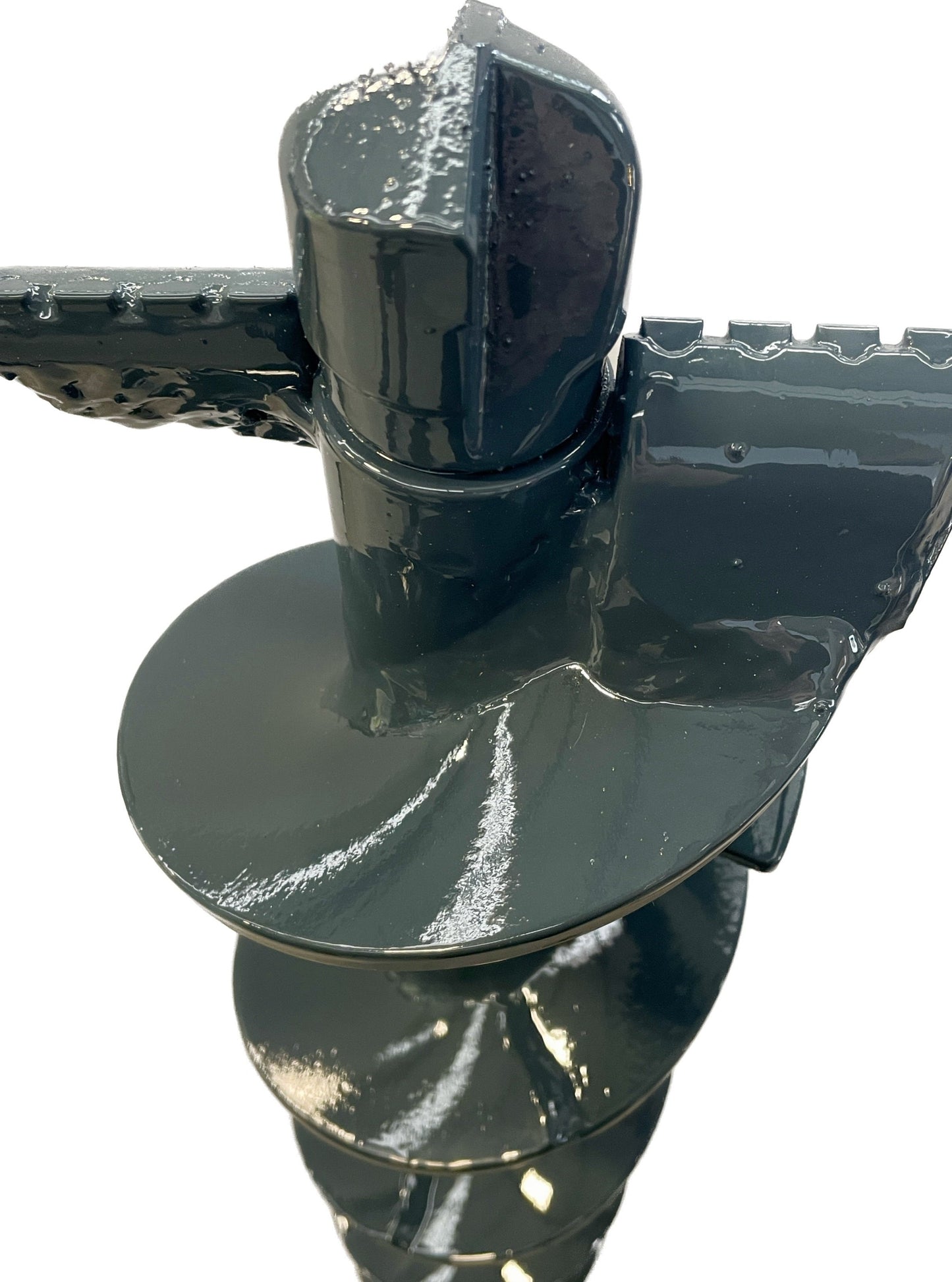

Rock Monster HARDOX Augers

Rock Monster Auger flights are built using 5/16” / 8mm Swedish Hardox® 500

SteelShafts are built from Solid Hardox® 400 Steel

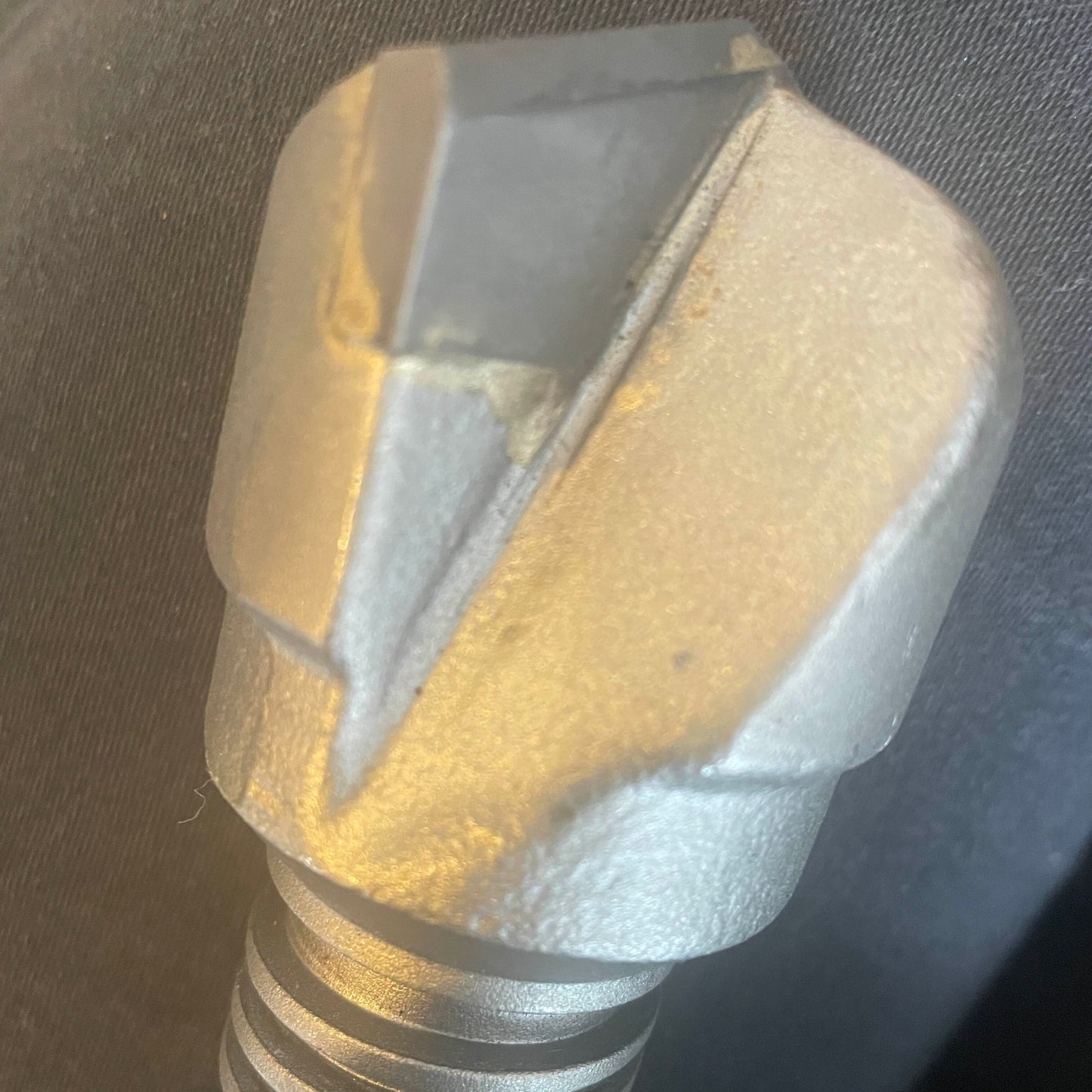

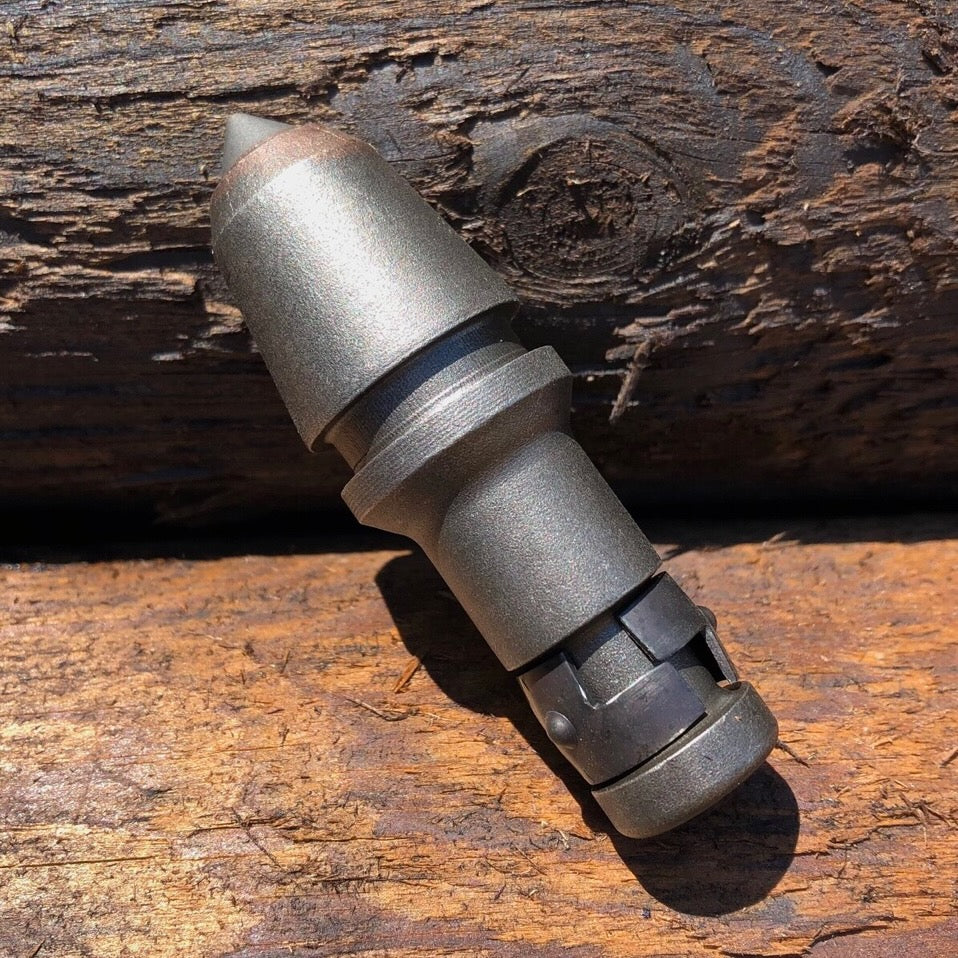

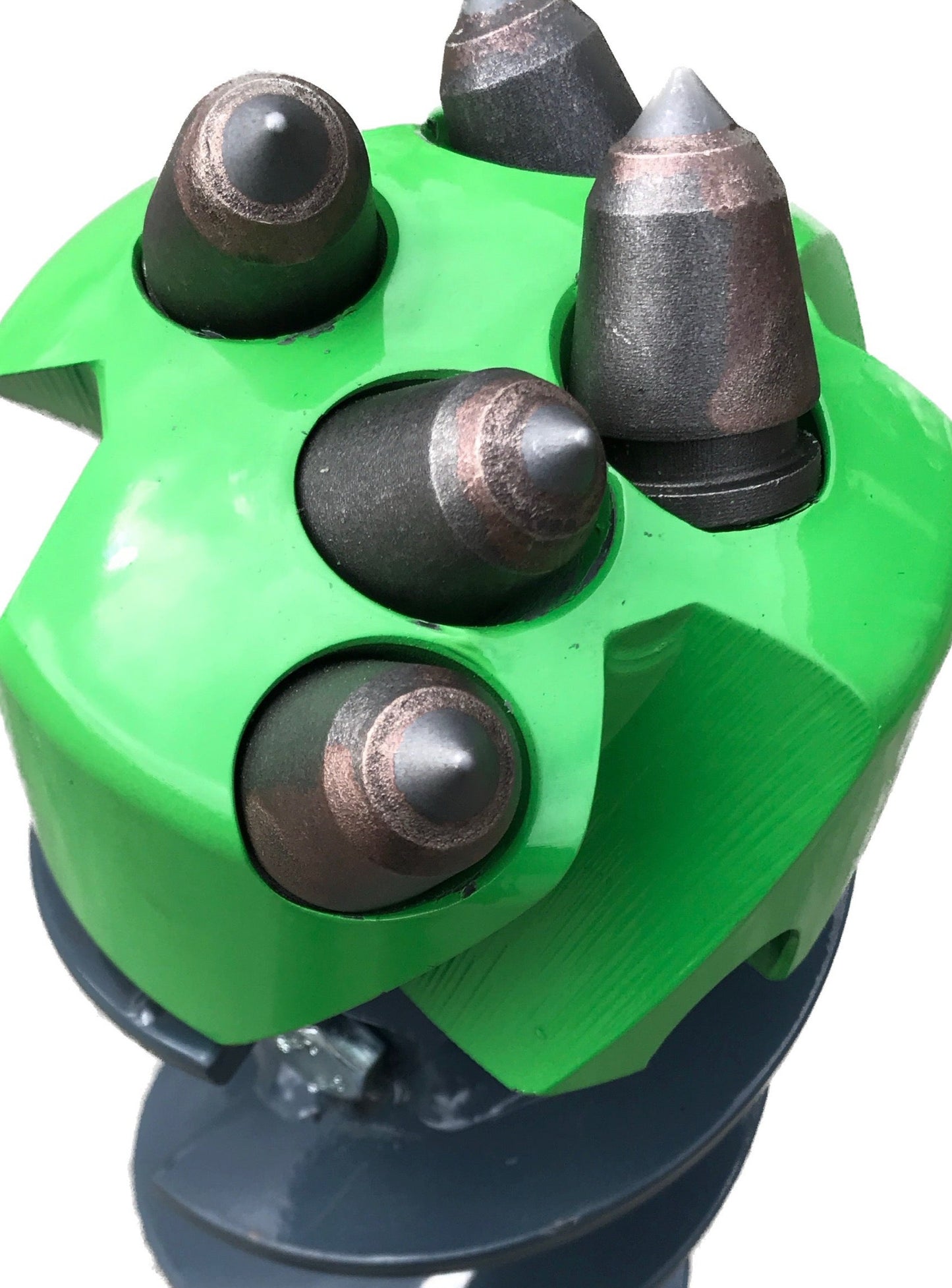

Interchangeable Head with interchangeble Teeth

Double first flight helps to reduce wear

Made to be used in fencing in hard abrasive ground

Hardox in my body® certified - confirms that this product is built using genuine Hardox® wear plate

Sizes available: 3“, 4”, 5“, 6”, 7“, 8”

Raptor also available for hard and compacted soil 4” & 6”
